Plate conveyor belt with high load capacity that allows you to load heavy duty product
Plate conveyor belt product
Plate conveyor belt can load heavy duty products without any other support, it provides a large area for sorting, drying or conveying products.
Plate conveyor belt can be divided into three types: chain, perforated and convex plate conveyor belt. Chain plate conveyor belt can be made into L-shaped, U-shaped or rectangular according to the requirement of space. The holes on the surface of perforated plate conveyor belt with good heat dissipation function. Convex plate conveyor belt has protrusions on the surface that provides the product excellent non-slip to prevent product from falling.
Plate conveyor belt feature
- High load capacity that can load heavy duty products.
- Anti-corrosion, anti-rust.
- Self-supporting structure does not require any other support.
- Straight and curved types to suit different conveying line.
- Low maintenance and easy cleaning, only use water to clean.
- Durable with longer lifespan.
Plate conveyor belt specification
-
Material:Carbon steel plate, stainless steel plate.
-
Surface treatment:Hot dipped galvanized.
-
Side plate thickness (mm):1.5, 2.0 or 3.0.
-
Side plate height (mm):38.1, 50.8, 76.2, 101.6 or 152.4.
-
Type

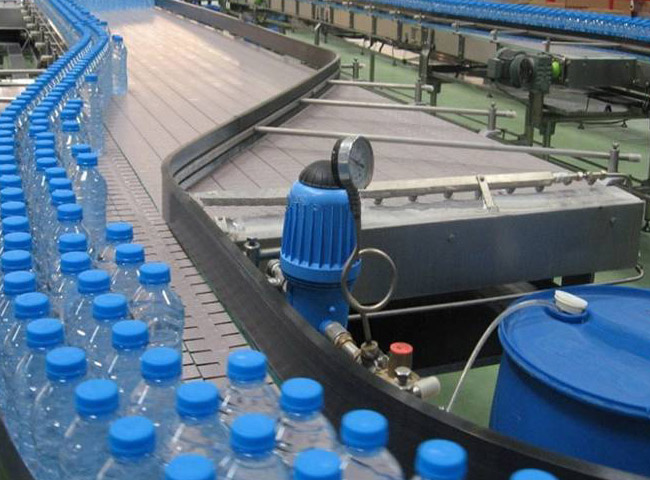

- Chain plate conveyor belt
- Shape
- Straight: single/double hinged.
- Curved: flat/bevel edge.
- Plate thickness: 2.5–5 mm.
- Plate width (mm): 76.2, 82.6, 88.9, 101.6, 114.3, 127, 152.4 or 190. Customized width available.
- Pin/Rod diameter: 5–8 mm.
- Pin pitch (mm): 25.4, 31.75, 38.1 and 63.5.
- Perforated plate conveyor belt
- Cross rod diameter: 5–20 mm.
- Plate thickness: 1–4 mm.
- Pitch: 25.4–125 mm.
- Hole shape: staggered/straight round, vertical/horizontal strip, slot, square.
- Convex plate conveyor belt
- Transverse baffle.
- Side plate.
Plate conveyor belt application
Plate conveyor belt can be used for following aspects in Transport, Drainage, Sorting,Waste treatment,Elevating.
